HFE Hybrid Fiber Enclosure

A Cross Between Dome & Multiport Terminal Closures

Multilink Inc., an Ohio-based company, has been in the telecommunication business since 1983. With its reputable manufacturing of fiber optic hardware, Multilink now introduces the newest category in FTTH/FTTX fiber optic architecture and plant construction. There is a high demand for the industry to consolidate fiber dome and multiport enclosures for outside plant. With this in mind, Multilink developed one that can offer more versatility in high-density plant and rural broadband communities. The goal of the Hybrid Fiber Enclosure is to focus on features that are not addressed in dome and multiport terminal closures that other manufacturers offer. Having the flexibility to configure the Optima™ U from 12 SC and LC fiber drops to 1x8 splitter drops put this product into a new league of its own.

In 2017, Multilink brought their Optima™ Series to market, introducing a patented two-compartment option for fiber networks. This provided selective access to the splice compartment to maintain security and protect the fiber. The Optima eliminated the use of hardened connectors in favor of SC and LC connectors, making field installations easier and more economically feasible. Additionally, by using standard connectors, the Optima Series removed the need to stock different lengths of pre-terminated drops.

Hybrid Fiber Enclosure

The industry is moving into faster, less-costly plant activation deployment. Adding the Optima U into the existing HFC/Fiber Plant allows plant operators to keep the existing fiber closures and integrate the Optima U into plant construction. Making for a more seamless build into your existing HFC and fiber plant.

Versatility

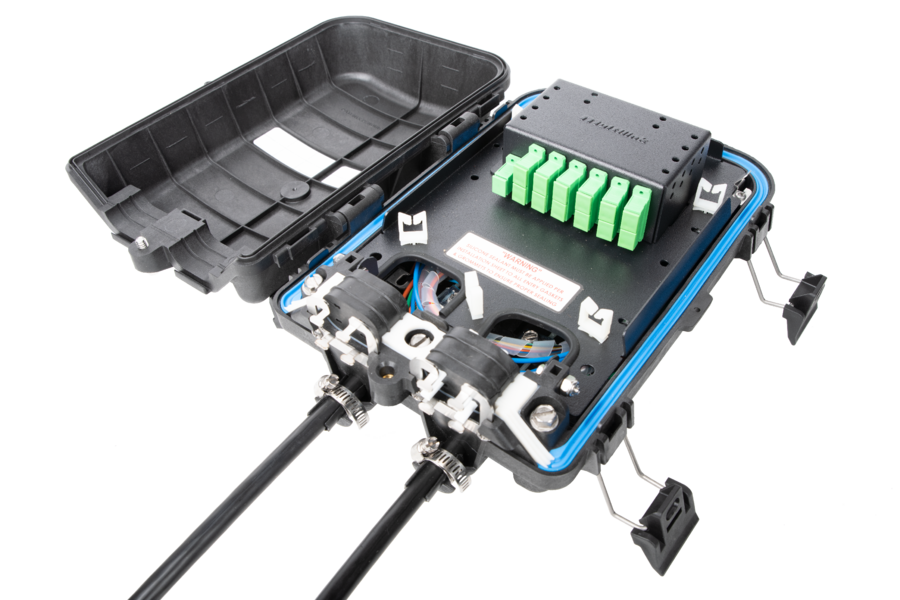

Multilink’s next evolution has led to its most versatile product yet. The Optima U, a hybrid fiber enclosure, is capable of securing network fiber regardless of weather, temperature, or location. This flexibility allows for wall, aerial, or cell installations. In addition, the Optima U is compact in design for pedestal mounting and below-grade applications. Designed to IP68 rating, the Optima U has been developed to withstand dust, dirt, sand and is water-resistant.

Adaptability

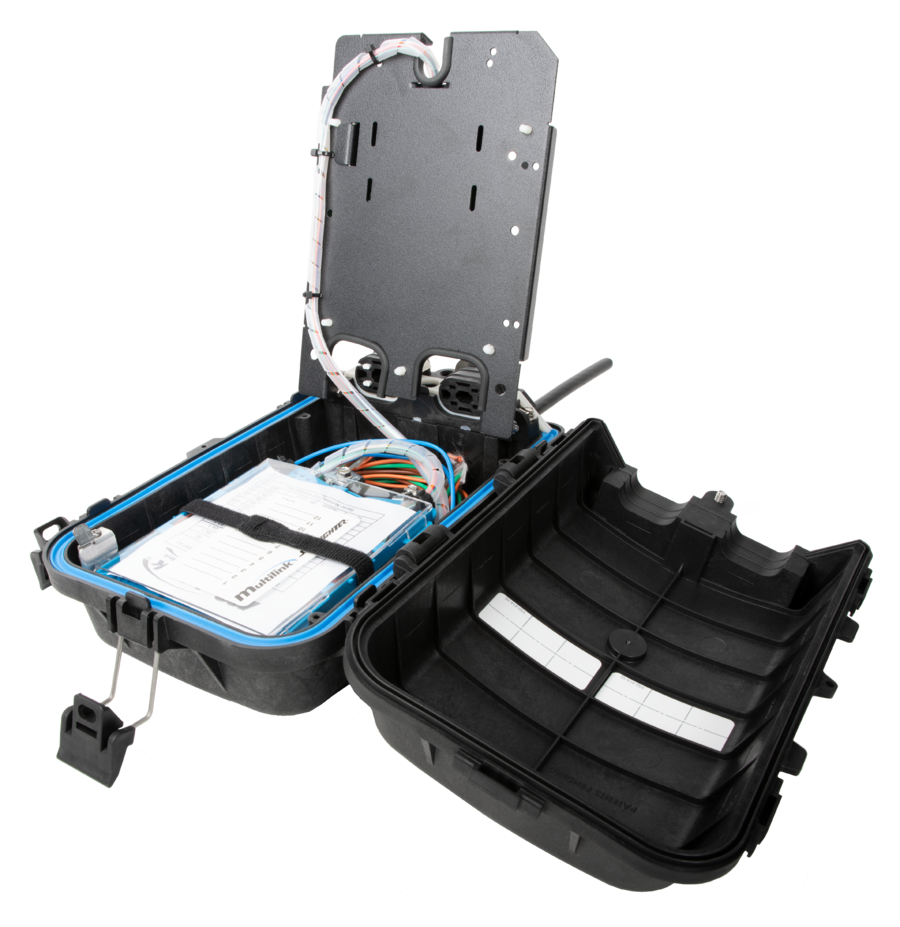

The Optima U is adaptable with grommets to suit a 48 count feeder cable (72 count max) and up to 12 Flat, Round, ROC, or Speedflex™ drop fibers. The unit allows for grounding and can be pressurized if required. Like the Multilink Optima S line of products, the Optima U also provides a separate splicing compartment which is set apart by an easy-to-lift, hinged plate. Cable management is provided within the unit to ensure the fiber is protected.

Features and Benefits:

• Simple to use and install
• Pass-Thru Fiber Capable
• Holds up to 12 Flat, Round, ROC or SpeedFlex Drops
• Separated Splice Tray from Drops
• Durable UV Rated Plastic Material
• Compact Design
• Up to 72 count ring cut fiber
• Non-captive entry ports
• Multi-function
• Scalability
• Small form or LGX type splitter
• Quick closure re-entry

“Designing a product that meets the customer’s needs is our main goal. Designing a product, that meets future needs, is what we strive for!” said David Hanzel, Senior Plant Project Engineer at Multilink. “With the Optima U, we developed a product to be used in all applications, underground being first, and above the ground second.

“This unique and compact design allows mid-span splicing while providing drop connection – two products in one. With splicing in the bottom section, it is secured from the installation of fiber drops, helping to increase reliability in the network. It is designed to be used with non-proprietary connections, offering cost-efficient solutions for inventory.”

Multilink is an industry-leading designer, developer, and manufacturer of products for OSP and LAN PREMISE applications serving telecommunication companies as well as the ITS/Traffic industry.

For more information on the Optima U, contact us at 440-366-6966.
